A North Port retaining wall without drainage behind it will fail — it's not a question of if, it's when.
Most retaining wall failures in this area happen behind the wall, not in front of it. The saturated sandy soil and hardpan layer of North Port's spodosol create enormous hydrostatic pressure after heavy rain. Without a gravel drainage layer and weep holes to relieve that pressure, the wall bows outward and eventually fails. We build every retaining wall with a minimum 12-inch gravel backer and proper weep drainage so the wall is still standing 20 years from now.
Soil drainage issue
Hardpan blocks backer drainage — must be addressed
Annual rainfall
~58 inches/year builds significant pressure
HOA density
Most North Port HOAs require wall approval
Typical residential wall
20–80 linear feet, 2–4 ft height
Project Record

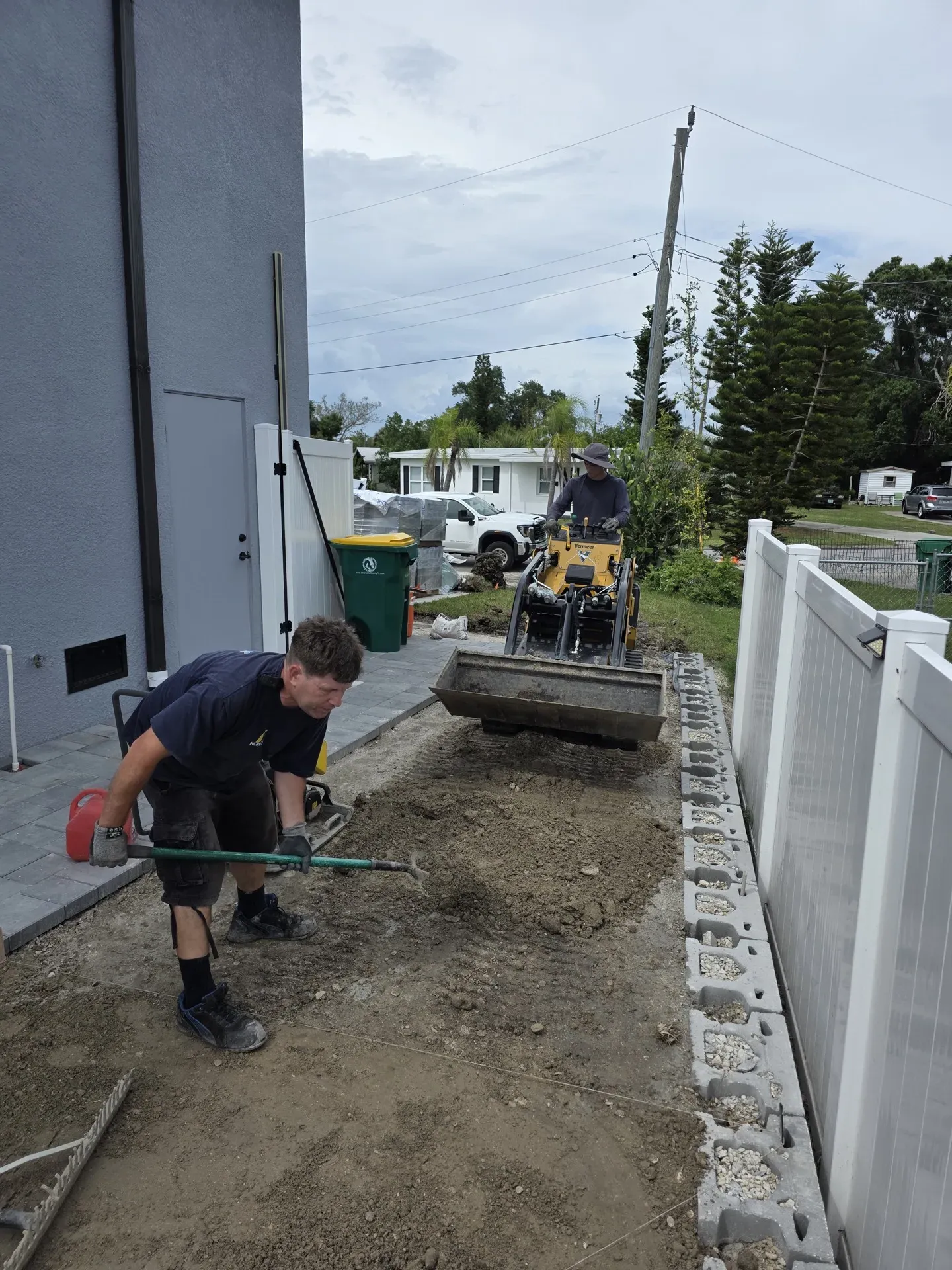

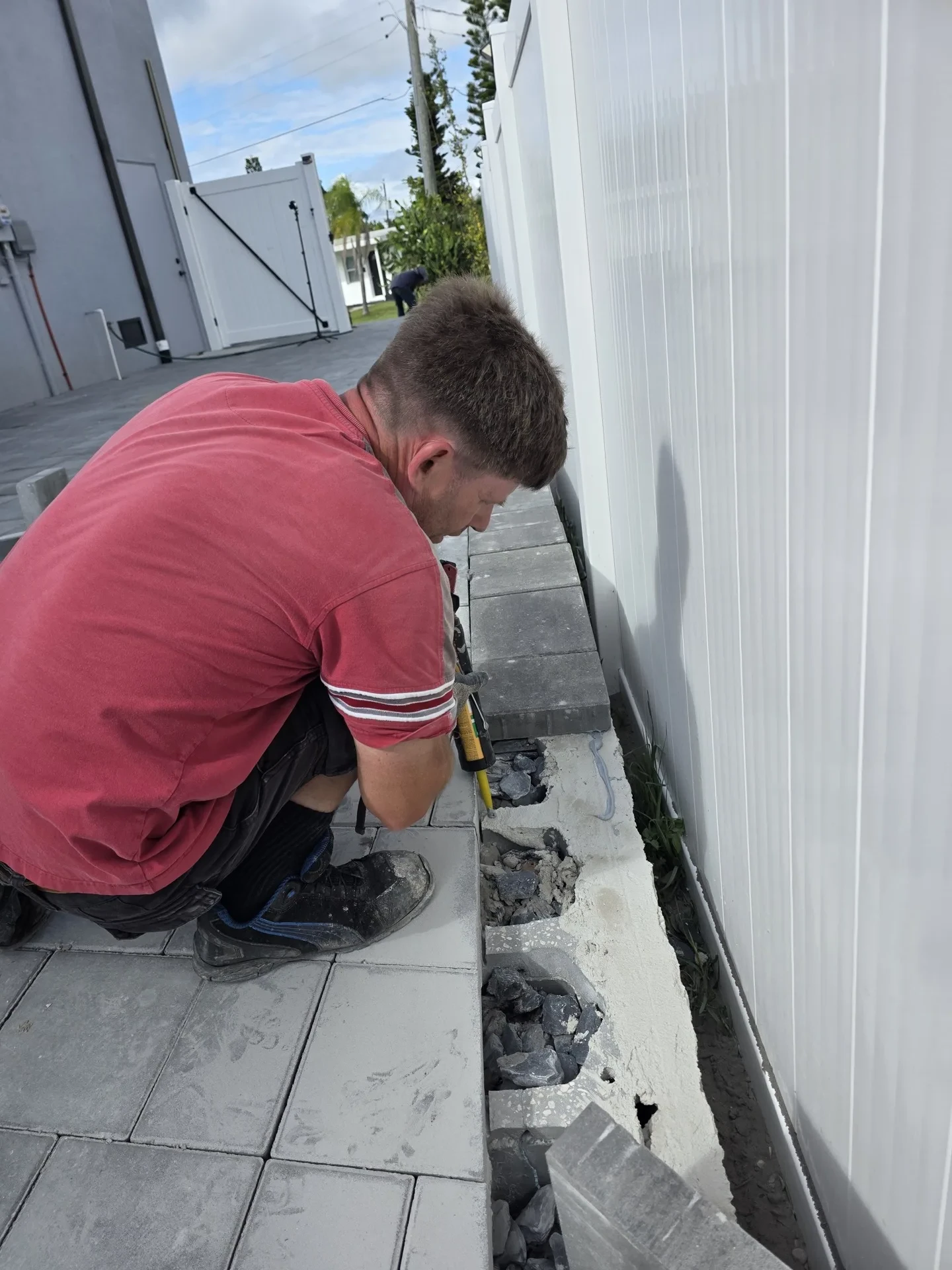

Retaining Walls Jobs My Crew Has Done in North Port
Real projects from real neighborhoods — I was on every one of these. Click any file to see the full record: materials, scope, timeline, and outcome.
North Port, FL
Location
North Port, FL
Material / Scope
66 retaining wall blocks, 4.5 cu yd topsoil, pygmy date palm, podocarpus
Total Area
33-ft stone retaining wall (66 blocks) + 4.5 cu yd topsoil + pygmy date palm + podocarpus
Timeline
2 days
Grade change in the backyard had been causing runoff to pool at the fence line and erode the soil behind the property boundary. We built a 33-ft stone retaining wall using 66 blocks to hold the grade change, backfilled with 4.5 cu yd of topsoil to restore the bed profile behind the wall, and planted a pygmy date palm and podocarpus to anchor the planting and cover the wall face over time.
Location
North Port, FL
Material / Scope
664 sq ft weed barrier, 6 cu yd decorative rock, 50 ft concrete curbing, tropical plants, irrigation reroute
Total Area
664 sq ft weed mat, 6 cu yd rock, 50 ft curbing, plants, irrigation reroute
Timeline
2 days
Lanai rock bed build — 50 ft of concrete curbing acts as the grade containment element here, holding the rock and bed material at the correct elevation along the lanai perimeter. Getting the curbing set first defines the bed boundaries and prevents the common problem of rock spreading into the lawn. Weed mat, 6 cu yd of decorative rock, and plant install through fabric cuts completed the build.
Location
North Port, FL
Material / Scope
4 pallets sod, 742 sq ft weed mat, 7 cu yd black slate, 90 ft concrete curbing, Christmas palms, agave, downspout drain system
Total Area
4 pallets sod, 90 ft curbing, 742 sq ft weed mat, 7 cu yd black slate, Christmas palms, agave, downspout drain
Timeline
3 days
Full property build where drainage had to be resolved first. Downspouts were discharging at the foundation and the grade along the house foundation needed to be corrected before sod went down. We ran downspout lines underground, corrected grade, installed 90 ft of concrete curbing to define all bed edges, then completed the landscape build: 4 pallets sod, 742 sq ft weed mat, 7 cu yd black slate, Christmas palms, and agave.

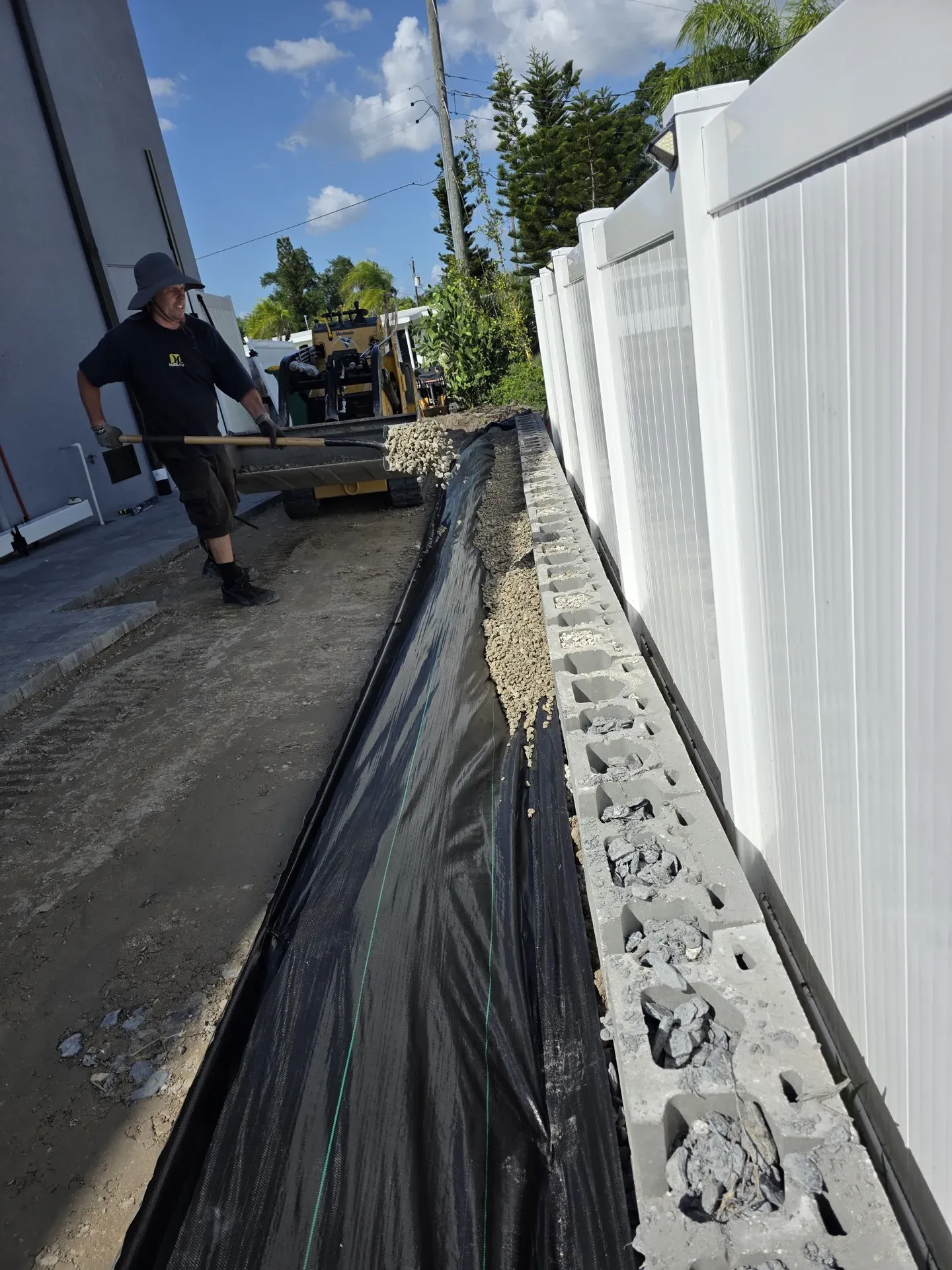

Location
North Port, FL
Material / Scope
Perforated drain pipe, gravel, filter fabric, solid downspout run, swale outlet
Total Area
35-ft French drain + downspout run + swale pipe
Timeline
1 day
Water collecting in a low area of the backyard after every storm. The grade naturally funneled water toward that corner and the soil was saturated. We installed a 35-ft French drain through the problem area, tied in the downspout from the rear gutter, and ran a solid pipe to the swale at the rear property line. French drain for subsurface saturation; downspout connection for roof water load during storms.
How We Work
Retaining Walls in North Port: What Actually Happens
I've done this job in North Port enough times to know what catches people off guard. Here's what actually matters — and what's specific to this area.
Step 01
Engineering Assessment + Permit Check
Dennis assesses the site — slope, soil type, surcharge loads, and drainage direction. Walls over 30 inches typically require an engineer stamp and permit. We confirm requirements with the local authority before any design is finalized.
⏱ Before work begins
Step 02
Base Excavation + Foundation Course
The trench is excavated to the correct footing depth — at minimum, one course buried below grade plus a gravel footing bed. The base course of block is set and leveled precisely. Level and batter are confirmed before the second course is set.
⏱ Day 1
Step 03
Wall Build + Block-by-Block Level Check
Courses are stacked with the correct batter — each course set back slightly toward the slope. Every third course is leveled across the full wall length. Geogrid is installed at specified intervals for walls over 3 feet. Drainage aggregate is packed behind the wall as courses rise.
⏱ Day 1–3
Step 04
Backfill + Cap Course + Final Grading
Clean fill is backfilled behind the wall in compacted lifts — no large rocks or construction debris. Cap course is set with adhesive and checked for level and overhang. The retained area is graded to drain away from the back of the wall. Disturbed sod or plantings are restored.
⏱ Final day
From Dennis P. — Owner, Epic Horizons
"I've done this job in North Port enough times to know exactly what makes it different here — and what goes wrong when someone skips the steps that matter."
North Port has specific site conditions that change how Retaining Walls is done. The soil, the water table, the HOA requirements — these aren't generic considerations. They're the actual job. Every estimate I give factors these in from the start.
Dennis P.
Owner · Licensed Contractor · SW Florida since 2022
North Port, FL
Transparent Pricing
What Affects the Price in North Port
North Port has specific conditions that change what a Retaining Walls project costs here. Here's what goes into your number.
Wall length and height
Square face footage determines block quantity
Wall cost is driven by length times height (face square footage). A 40-foot wall at 3 feet high uses twice the block of the same wall at 18 inches. Engineering requirements also increase with height.
Block material
Concrete block, natural stone, and timber are all options
Concrete segmental block is the most common — durable, available locally, and HOA-friendly. Natural stone walls cost more but have a different aesthetic. Timber is generally avoided in North Port due to moisture and pest exposure.
Drainage system
Gravel backer and pipe add to cost but are non-negotiable
Skipping the drainage backer saves money for maybe 3 years, then you're rebuilding the wall. In North Port, proper drainage behind the wall is not optional and is included in every project we bid.
Site access
Tight backyard access adds mobilization cost
Walls in backyards with limited equipment access require hand-setting more material. If the site can't get a mini-excavator or skid steer in, labor time increases accordingly.
Built to hold — not just look good on install day.
Every wall we build in North Port includes proper drainage engineering. We give you a written scope before we start.
